Flexible single-use ureteroscopes
and cystoscopes
Clean and Clear, Every Time
Why AXIS II Family
Single-use and sterile for
enhanced patient safety
enhanced patient safety
Uncompromised image
quality, scope handling, and maneuverability
Eliminates costs associated
with reprocessing, repairs,
and maintenance
Laser-cut stainless steel in a snake
skeleton-like structure, as solid and
flexible as a reusable endoscope
Readily available and simplifies
workflows in the operating
room and daily practices
Integrated connection cable
to the video processor
to the video processor
AXIS II URS
The next-generation flexible single-use ureteroscope is used to visualize organs, cavities and canals in the urinary tract (urethra, bladder, ureter, calyces and renal papillae) via transurethral access routes. It can also be used in conjunction with endoscopic accessories to perform various diagnostic and therapeutic procedures in the urinary tract.*
Model D
Model E
SLIM 7.5
Model D
Model E
SLIM 7.5
Integrated connection cable
to the video processor
Separate irrigation port
with integrated stopcock for on-demand irrigation control
Traditional look and feel, lightweight
Ergonomic lever control
for precise deflection

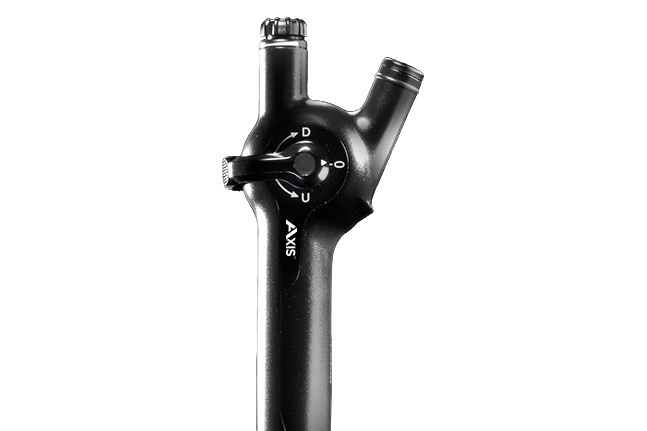

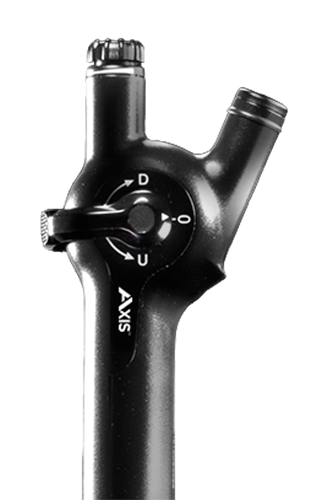

Straight working channel
with adjustable seal
Integrated connection cable
to the video processor
Easy image and video capture
with just the touch of a button
Luer connection working channel
(T-luer adapter is included)
Lightweight and ergonomic
Built-in locking mechanism
provides free OR locking status for precise lever control and reduced thumb fatigue
Easy image and video capture
with just the touch of a button
Luer connection working channel
(T-luer adapter is included)
Traditional look and feel,
lightweight
Built-in locking mechanism
provides free OR locking status for precise lever control and reduced thumb fatigue
*Further information on the intended use can be found in the instructions for use (IFU).
Distal Tip
- 275° bidirectional deflection
- Tapered tip for easy insertion
- 3.6 Fr working channel
- CMOS technology with 160,000 pixel resolution
Distal Tip
- 275° bidirectional deflection
- Tapered tip for easy insertion
- 3.6 Fr working channel
- CMOS technology with 160,000 pixel resolution
AXIS II CYSTO
Dornier’s flexible single-use cystoscope offers excellent visualization of the urethra and bladder for diagnostic and therapeutic procedures.*
Easy image and video capture
with just the touch of a button
Luer connection working channel
(T-luer adapter is included)
Lightweight and ergonomic
Built-in locking mechanism
provides free OR locking status for precise lever control and reduced thumb fatigue
*Further information on the intended use can be found in the instructions for use (IFU).
- 210° up / 180° down deflection
- Rounded tip with 16.5 Fr outer diameter
- 7.2 Fr working channel
- CMOS technology with 640,000 pixel resolution
AXIS II Video Processors
Designed for and compatible with AXIS II URS & CYSTO Family endoscopes
Powerful processors with advanced image algorithm for optimized image quality
Adaptive LED light control function offers clear and sharp images
Integrated USB port
for external data storage
for external data storage
The AXIS II Video Processor
- For direct integration into the operating room video system
- Intuitive control layout
using the buttons placed on the front
The AXIS II Video Processor connects seamlessly with standard monitor types, displaying endoscopic imaging via a transmission cable for easy integration into any operating room.
AXIS II Portable Monitor
with integrated video processor
- Portable touchscreen monitor with integrated video processor
- Built-in stand for convenient placement
- Stand-alone, battery-powered monitor
- Optional connectivity to external monitors
The versatile AXIS II Portable Monitor offers optional connectivity to standard monitor types and functions as a stand-alone unit, displaying endoscopic imaging via a transmission cable for easy integration into any operating room.
